Model
|

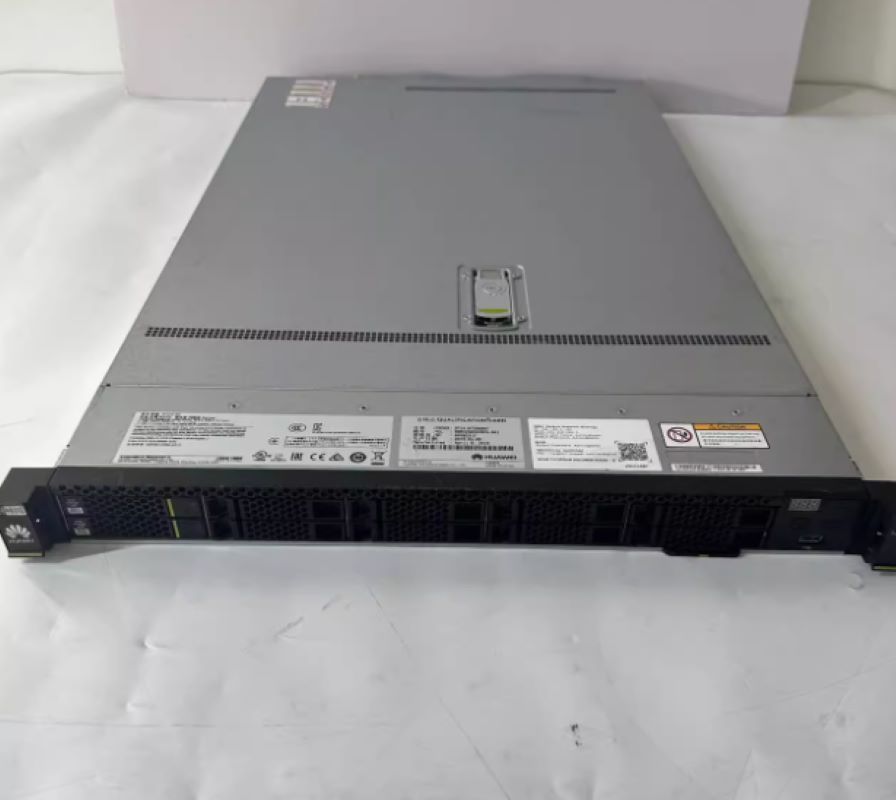

FusionServer 2288H V6
|
|
Factor de formă
|
2U Rack Server
|
|
Maxim Processor
|
One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 serie), TDP up to 270 W
|
|
RAM
|
16/32 DDR4 DIMMs, până la 3,200 MT/s; 16 Optane™ PMem 200 serie, până la 3,200 MT/s
|
|
Drive bays
|
Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: • Dual M.2 SSDs |
|
Controlere de stocare
|
Supports RAID 0, 1, 10, 1E, 5, 50, 6, sau 60, optional supercapacitor for cache data power failure protection, RAID level
migration, drive roaming, self-diagnosis, and remote web-based configuration |
|
I/O & Porturile
|
LOM: 2 x 10GE + 2 x GE ports
|
|
Alimentare
|
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, sau 192 V to 288 V DC)
• 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, sau 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, sau 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, sau 200 V to 288 V DC) |
|
Height X Width X Depth
|
Chassis with 3.5-inch drives: 86.1 mm x 447 mm x 790 milimetru
Chassis with 2.5-inch drives: 86.1 mm x 447 mm x 790 milimetru |
|
Rail
|
Optional rail
|
|
Weight
|
30.0kg
|
2288HV6 Server 2U Server Chassis Xeon 28core 2.0GHZ 6330 32G DDR4 Memory New Wholesale Huaweis 2288HV6 or 2288HV5
