Products Description

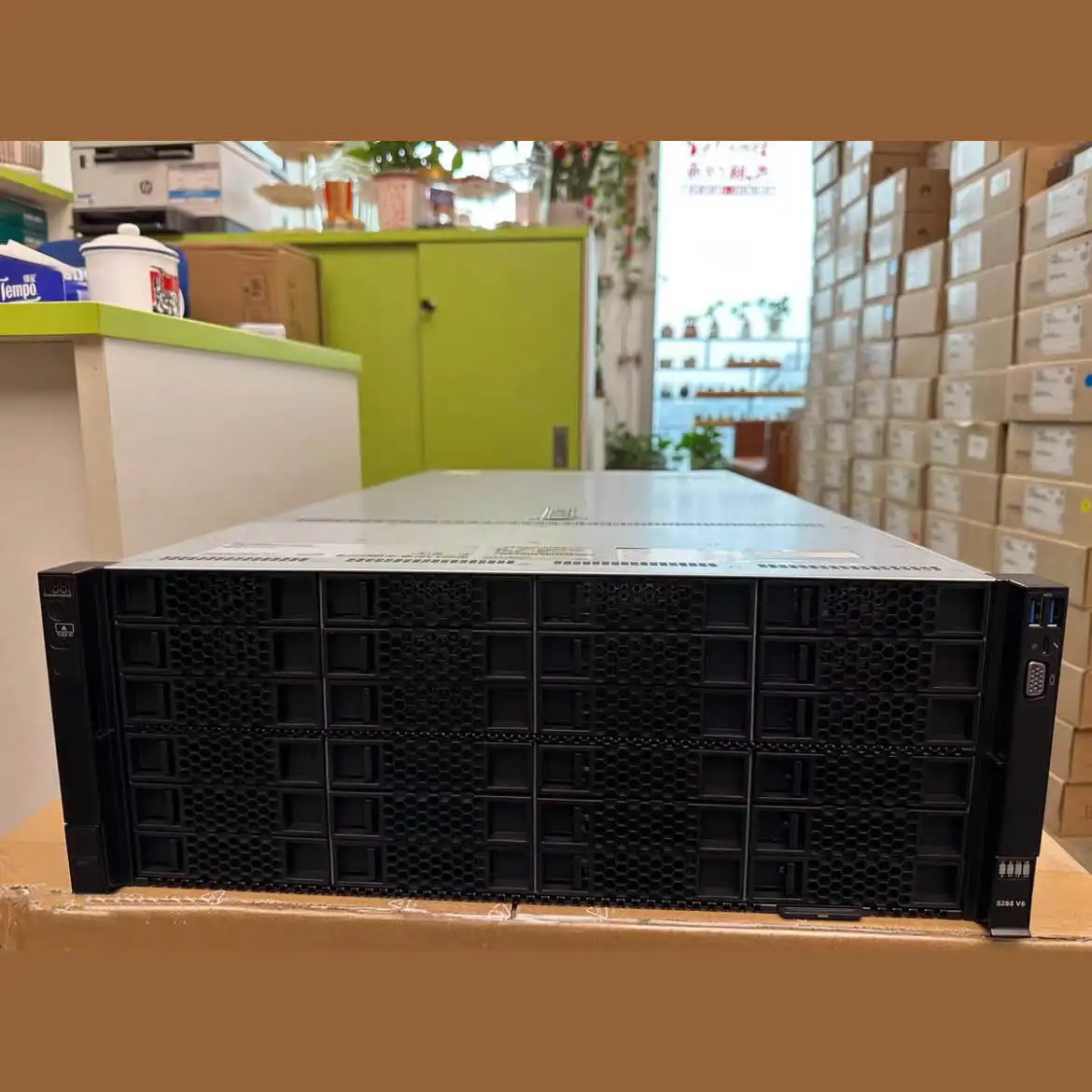

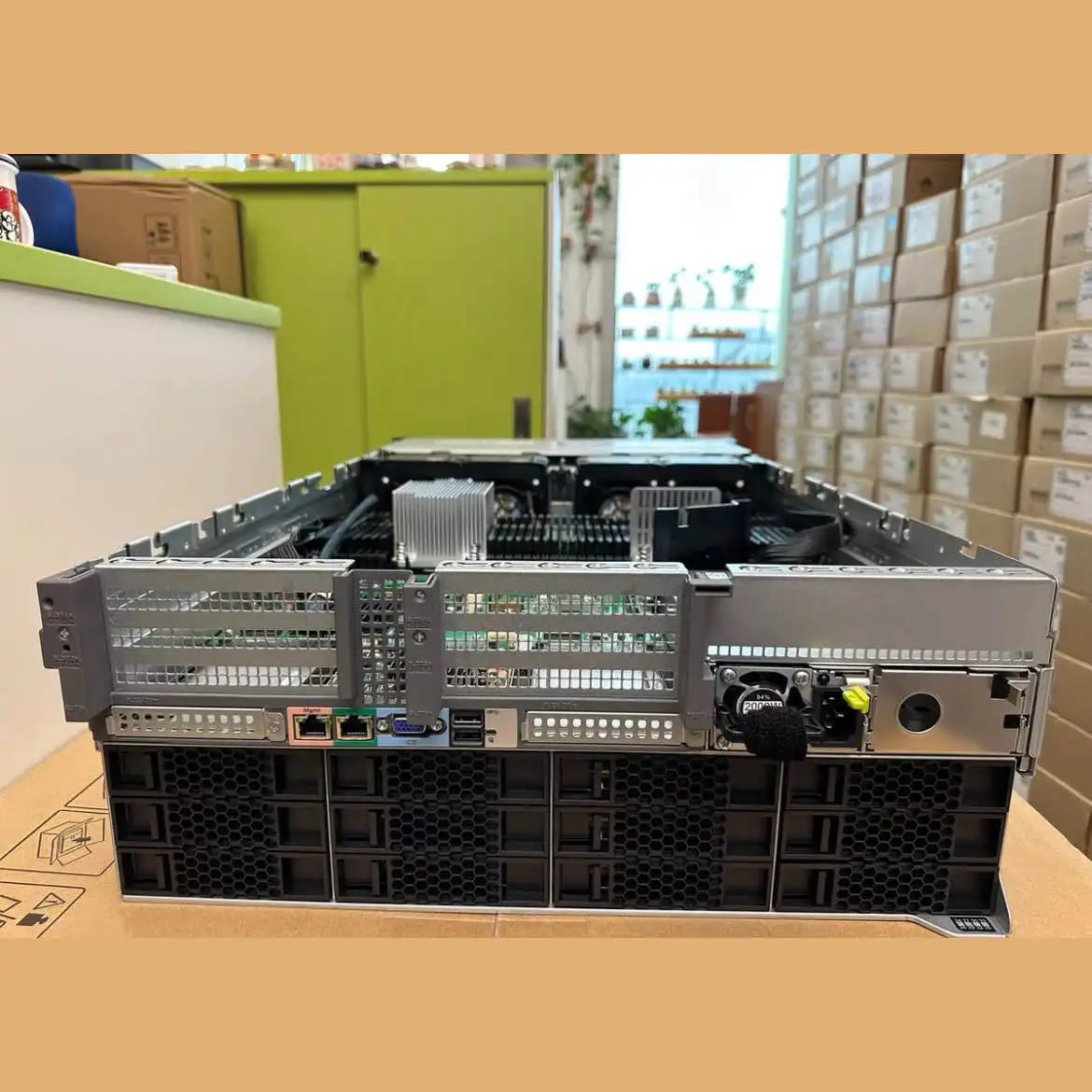

Rack Server 5288 V6
• FusionServer 5288 V6
-Meets warm and cold storage requirements and is preferred for video analysis storage servers-FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, y 44 3.5-pulgada + 4 NVMe SSDs in a 4 U space. Integrates
-Meets warm and cold storage requirements and is preferred for video analysis storage servers-FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, y 44 3.5-pulgada + 4 NVMe SSDs in a 4 U space. Integrates
Specification
|
Especificaciones técnicas
|
|
|
Model number
|
FusionServer 5288 V6
|
|
Factor de forma
|
4U 2-socket Rack Server
|
|
Procesadores
|
1/2 3rd Generation Intel® Xeon® scalable processor (Lago de Hielo) (8300 / 6300 / 5300 / 4300 Serie) , up to 270W
|
|
Chip Set
|
Intel® C621A
|
|
Memoria
|
32 DDR4 memory slots, hasta 3200 MT/s; Hasta 16 Intel® Optane TM Persistent Memory 200 Serie, up to 3200MT/s
|
|
Almacenamiento local
|
Various hard disk configurations are supported. The hard disks are hot swappable:
· 36 Para 44 3.5-inch SAS/SATA HDDs and 4 SSD NVMe · 24 x 3.5-inch SAS/SATA front hard disks · 4 3.5-inch SAS/SATA internal hard disks · 16 3.5-inch SAS/SATA hard disks and four 2.5-inch SAS/SATA/NVMe rear hard disks · 12 3.5-inch SAS/SATA disks and eight 2.5-inch rear hard disks (4 x 2.5″ HDDs + 4 x 2.5″ SAS/SATA/NVMe) Almacenamiento flash: · Dual M.2 SSDs |
|
RAID Support
|
Supports RAID 0, 1, 5, 50, 6, y 60, cache supercapacitor protection, RAID level migration, Roaming de disco, Autodiagnóstico, y
web-based remote configuration, and multiple network expansion capabilities |
|
Network
|
OCP 3.0 NIC
The two FLEX I/O card slots support two OCP 3.0 NICs, which can be configured as required Supports multiple OCP 3.0 NICs Supports hot swap |
|
Expansión PCIe
|
A maximum of 11 Pcie 4.0 Ranuras, including one dedicated PCIe slot for the RAID controller card, two dedicated FLEX I/O slots for
OCP3.0, and eight standard PCIe 4.0 Ranuras |
|
Fan Modules
|
Four hot-swappable fans, supporting N+1 redundancy
|
|
Fuente de alimentación
|
2 redundant hot-swappable PSUs are configured in 1+1 redundancy mode. The optional specifications are as follows:
· 900W AC Platinum/Titanium power supply (Input: 100–240 V AC or 192–288 V DC) · 1500 W AC Platinum PSU · 1000 W (entrada: 100 V AC to 127 V AC) · 1500 W (entrada: 200–240 V AC or 192–288 V DC) · 2000 W AC Platinum PSU · 1800 W (entrada: 200–220 V AC or 192–200 V DC) · 2000 W (entrada: 220–240 V AC or 200–288 V DC) |
|
Dimensiones (H x W x D)
|
Chassis dimensions: 175 milímetros x 447 milímetros x 790 milímetro
|
